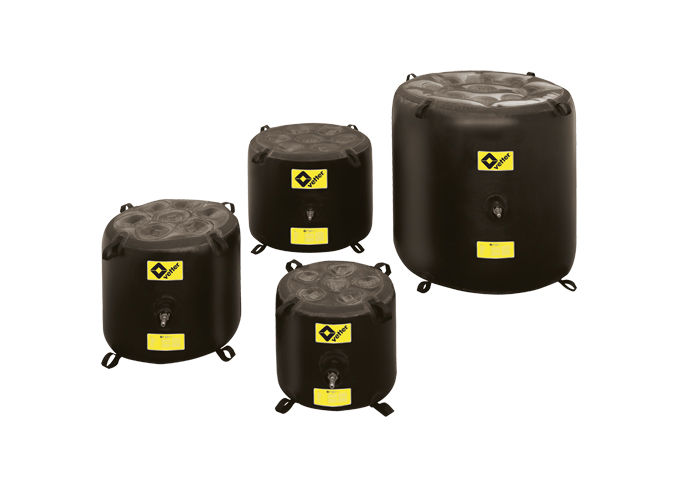

Medium Pressure Lifting Bags

Versatile with great lifting height.

Categories: ,

Description

Our classic pneumatic lifting bag has proven itself in 40 years of service. Trust in handwork made in Germany and rely on the pneumatics professionals.

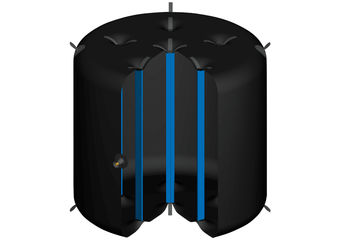

Internal stabilising straps keep the pneumatic lifting bag from bulging and provide a flat contact area over the entire lifting height. Vetter lifting bags are distinguished by an ideal pressure distribution.

In effect, they can also lift thin-walled coachwork such as lorries, vans or small airplanes without damaging them. On soft or slippery surfaces, the clever anti-slip dimples on the extremely tough top and bottom sides provide a firm hold.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • High stability
  • Minimal pressure point loading
  • Lifting height up to 127 cm (50 inch)
  • Insertion height only 3 cm (1.2 inch)

Standard insertion height of only 3 cm (1.2 inch).

    • Working pressure: 1 bar (14.5 psi)
    • Test pressure: 1.5 bar (21.75 psi)

Fitting control. In accordance with EN 13731, these items are not approved for fire brigade use in the EU.
