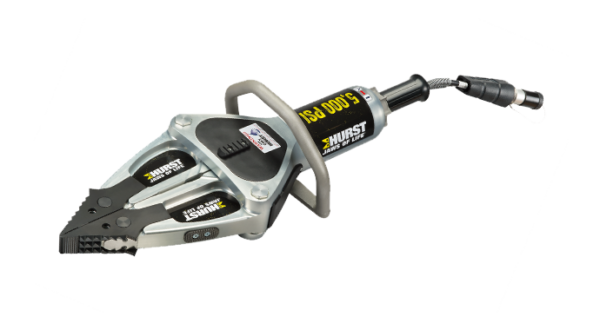

SL-528 Defender

Problem solved.

Categories: ,

Description

Problem, meet Defender. Defender, solve problem.

That’s how it works with the SL-528 Defender. With improved ergonomic features as well as a star-grip actuator with a stationary handle for easy fingertip actuation in even the most compromising rescue situations, you can make short work of any rescue scene. But it’s the Defender’s enhanced power that is so impressive. It yields a hefty spreading force of over 71,900 pounds and a pulling force of up to 6,510 pounds, yet it weighs in at a light 35.9 pounds. Let’s work.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted
  • Ergonomically designed star-grip permits tool actuation from almost any gripping position
Downloads
Length Extended 32.4 in/823 mm
Width 11.2 in/285 mm
Height 7.95 in/202 mm
Weight 35.9 lbs/16.3 kg
Spreading Distance 28.7 in/730 mm
Max Spreading Force 71,900 lbs/320 kN
Max Pulling Force 6,510 lbs/29 kN
NFPA HSF 8,090 lbs/36 kN
NFPA LSF 5,620 lbs/25 kN
NFPA HPF 5,170 lbs/23 kN
NFPA LPF 3,140 lbs/14 kN
NFPA 1936 2015 Compliant Yes
