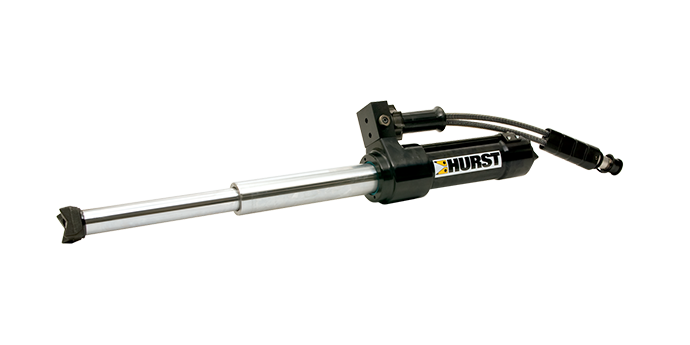

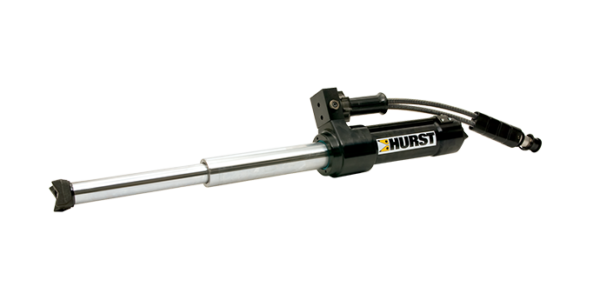

T-41 Ram Steamline

Power meets stroke meets compact size.

Categories: ,

Description

The T-41 finds a way to balance superior power and stroke with compact size. In fact, the two-stage telescoping action provides nearly double the stroke length and power while requiring less storage space than single-stage units. That’s not easy to do – unless you’re the T-41, of course. Ideal for displacing dashboards or steering columns, this unit goes beyond the limitations of traditional rams.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control.
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted.
  • Hard chrome-plated, solid steel piston rod provides high tensile strength and eliminates side load distortion.
  • Heat-treated, investment-cast steel ram feet feature a highly durable gripping surface to minimize slippage.
Downloads
Length Retracted 18.9in/480mm
Length Extended 41.5in/1055mm
Width 4.53in/116mm
Height 8.31in/211mm
Weight 37.3lbs/16.9kg
Stroke – First Stage 11.6in/295mm
Stroke – Second Stage 11.0in/280mm
Stroke – Total 22.6in/575mm
Max Pushing Force – First Stage 29,900lbs/133Kn
Max Pushing Force – Second Stage Stage 14,950lbs/66.5Kn
NFPA 1936 2015 Compliant Yes
