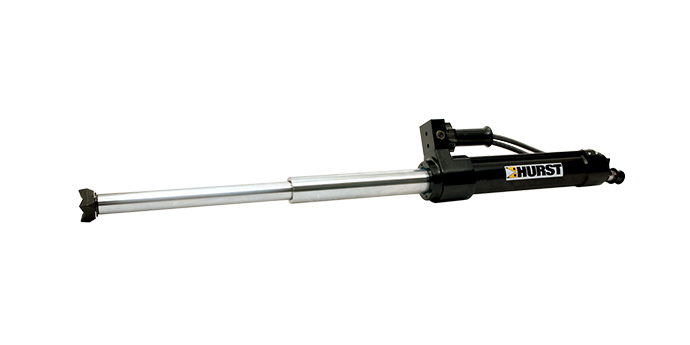

T-59 Ram Streamline

In the telescoping ram world, it’s a freak of nature.

Add to Quote
Categories: ,

Description

Rarely can you balance power, stroke and compact size as well as the T-59 telescoping ram does. Ideal for displacing dashboards or steering columns, this unit does what others can’t. Best yet, the two-stage telescoping action provides nearly double the stroke length and power while requiring less storage space than single-stage units. You’re welcome.

Request Information

  • Please provide any additional information that may help us understand your needs & requirements.
  • This field is for validation purposes and should be left unchanged.

Features
  • Dead man control valve reverts to neutral position if worker’s hand slips from control.
  • Dual pilot check valve sustains load requirements if hydraulic flow is interrupted.
  • Hard chrome-plated, solid steel piston rod provides high tensile strength and eliminates side load distortion.
  • Heat-treated, investment-cast steel ram feet feature a highly durable gripping surface to minimize slippage.
Downloads
Length Retracted 24.6in/625mm
Length Extended 59.1in/1500mm
Width 4.53in/115mm
Height 8.31in/211mm
Weight 46.3lbs/21kg
Stroke – First Stage 17.5in/445mm
Stroke – Second Stage 16.9in/430mm
Stroke – Total 34.5in/875mm
Max Pushing Force – First Stage 29,900lbs/133Kn
Max Pushing Force – Second Stage Stage 14,950lbs/66.5Kn
NFPA 1936 2015 Compliant Yes
